1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting

  • 1
  • 2
  • 3

Brand Name : Elite Tree

Model Number : ET144NP

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : TFT ,1.44'' 128*128 TFT Module LCD Display

Viewing Direction : 6 o'clock

Operting Temperature : -20~70C

Driver IC : ST7735S

Interface : RGB Parallel

Backlight : 1pc LED White

Active Area : 25.5*26.5 mm

Outline dimension : 30.6*34.8*2.5 mm

Contact Now

1.44 inch 128*128 Resolution RGB LCD Display Module Optional Touch Screen

TFT LCD Display Module

Product Information

Display Type 1.44'' TFT screen
Display format 128*128 Dots
Outline dimension 30.6*34.8*2.5 mm
Visual area 27.7*32.4mm
Active area 25.5*26.5 mm
IC package
 COG
IC or equivalent
 ST7735S
Interface RGB Parallel
Touch panel optional Yes
Viewing direction 6:00
LED backlight color
 White
Power supply(typ) 3.1V
Backlight current (typ) side, white Led(1PCS)
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

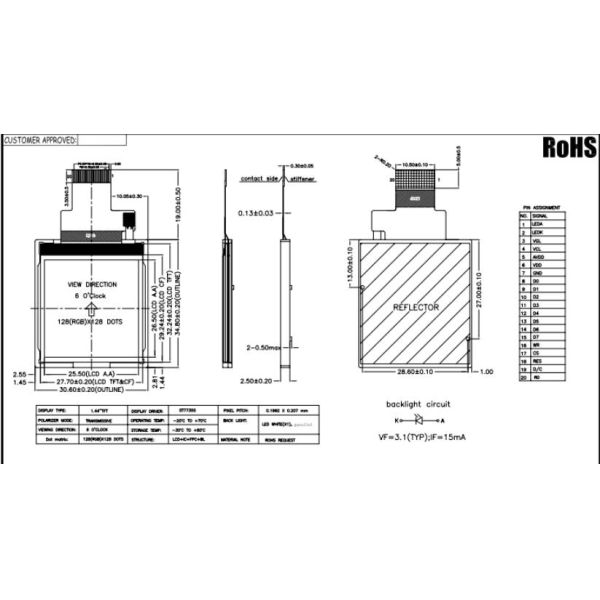

Product Drawing

1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting​

Product Photo

1.44'' Mini LCD Display Module RGB Parallel Interface 128 X 128 3.1V Operting
